40Gb/s QSFP+ LR4 10km
Author:sales055   Source:Dongwe   Date:8/1/2014   Hits:

40Gb/s QSFP+ LR4 10km


Good news:

     After repeated testing , our 40Gb/s QSFP+ LR4 (DW-D404C-10CQ) turns out to be stable and high performance.

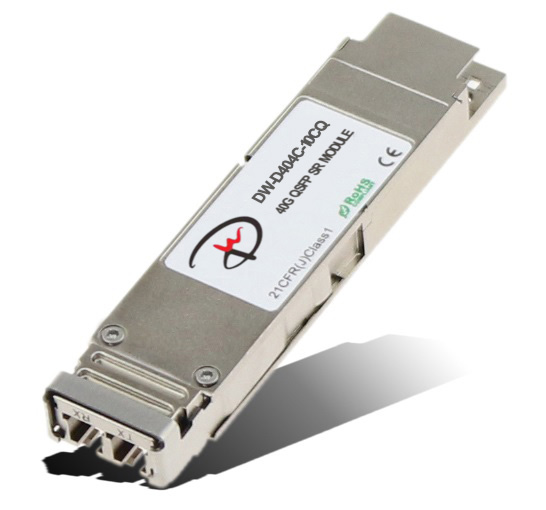

     DW-D404C-10CQ is a 4x10G hot pluggable optical transceiver. The DONGWE technology enables the integration of 4 transmitters, 4 receivers and an optical MUX/DeMUX into a small form factor package that delivers a 40 Gbps data link in a compact QSFP footprint. The optical connectivity is based on two SMF LC connectors, one for Tx and one for Rx. The Tx and Rx each consists of 4 10GB/s CWDM channels, whose wavelengths are in the 1300nm range. The QSFP-LR transceiver is designed for applications based on the IEEE 802.3ba 40BASE-LR4 standard of up to 10km reach.


Transmission data rate up to 11.2Gbps per channel
QSFP+ MSA compliant
Compliant to IEEE 802.3ba specification for 40GBASE-LR4 links
4 CWDM un-cooled DFB lasers, using ITU G.694.2 wavelength grid at 1270, 1290, 1310 and 1330nm
High Sensitivity PIN-TIA with optical DEMUX
Up to 10km reach over standard single mode fiber
Compliant with QDR/DDR Infiniband data rates
Hot pluggable electrical interface
Lower power consumption
Operating case temperature 0°C to +70°C
3.3V power supply
RoHS 6 compliant(lead free)


40GBASE-LR4 40G Ethernet links
Infiniband QDR and DDR interconnects
Client-side 40G Telecom connections


Customers from all over the world are welcome to contact us for any questions.
We sincely hope that our products will be helpful for your business. Thanks!!!
