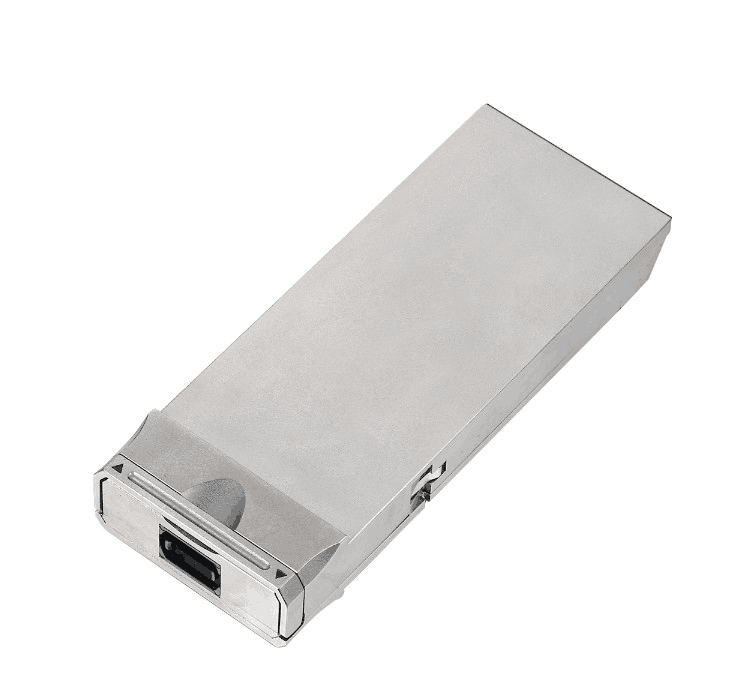

Networks100GBASE-SR10 CFP2 Optical Transceiver Module
Author:sales055   Source:DONGWE   Date:7/28/2016   Hits:

Our Networks 100GBASE-SR10 CFP2 Optical Transceiver Module successfuly appears on market after 100G CFP SR10.


¨        Compliant to CFP2HardwareSpecification Version 1.0

¨        Compliant to CFP2 MSA Management InterfaceSpecification Version 2.2

¨        Compliant to the IEEE 802.3ba(100GBASE-SR10)

¨        Transmission data rate up to 11.18 Gbit/sper channel

¨        Up t 300m on OM3 and 400m on OM4 MMF

¨        Power class 1 (<7W max)

¨        OTU4 compatible

¨        10 channels 850nm VCSEL array transmitter

¨        10 channels PIN photo detector array receiver

¨        MDIO digital diagnostic interface and controlcapabilities.

¨        TX input and RX output CDR retiming

¨        Hot pluggable electrical interface

¨        Single 3.3V power supply

¨        RoHS 6 compliant(lead free)

¨        Utilizes a standard 24/20 lane optical fiber with MPOconnector

¨        Operatingcase temperature:

         Standard: 0 to +70°C

         Industrial : -40 to +85°C


¨        100GBE interconnects

¨        High-speed core router connections& Datacom/Telecom switch

¨        Data aggregation and backplane applications

¨        Proprietary protocol and density application
